Reference : SCG238E017MO.24/DC
Catalog Price :
€371.42
Tax excluded 21.00 %
| Supplier series | 238 |
| Specifications | NC (Normally closed) |
| Body material | Brass |
| Sealing | NBR |
| Diameter of connection | 1"1/2 |
| Full voltage code | 24/DC |
| Min differential pressure | 0.5 |
| Max differential pressure | 10 |
| Operated | With manual control |
| Kv Flow rate (m³/h) | 27 |
| Fluid working Temp | (-10°C to 85°C) |
| Ambient Temp | (-10°C to 60°C) |
| Compatibility - fluids | Air, neutral gas, water, oil |
| Dimensions (mm) | 140 |
| Type of current | Direct (=) - DC |
| Voltage | 24V |
| Customs duty number | 8481-8087 |
| Gross weight (kg) | 2,6 |
| Eclass | 27220000 |
| Country of origin | IT |
| UNSPSC Code | 31251500 |

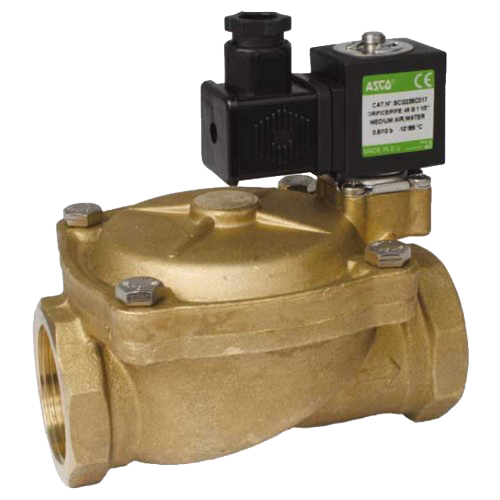

SOLENOID VALVE 2/2NF, G1 1/2, DN=45, FLOATING DIAPHRAGM, BRASS BODY , WITH MANUAL OPERATOR, FPM , WITH PPS IP67 COIL 24/DC WITH CONNECTOR
