Reference : E262K188S1N01H1
Catalog Price :
€185.31
Tax excluded 21.00 %
| Supplier series | 262 |
| Specifications | NC (Normally closed) |
| Body material | Stainless Steel |
| Sealing | NBR |
| Diameter of connection | 1/4'' |
| Full voltage code | 24/DC |
| Min differential pressure | 0 |
| Max differential pressure | 4 |
| Operated | With manual control |
| Kv Flow rate (m³/h) | 0.63 |
| Fluid working Temp | (-25°C to 80°C) |
| Ambient Temp | (-25°C to 55°C) |
| Compatibility - fluids | Air, neutral gas, water, oil |
| Dimensions (mm) | 40 |
| Type of current | Direct (=) - DC |
| Voltage | 24V |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 0,598 |
| Eclass | 27220000 |
| Country of origin | FR |
| UNSPSC Code | 31251500 |

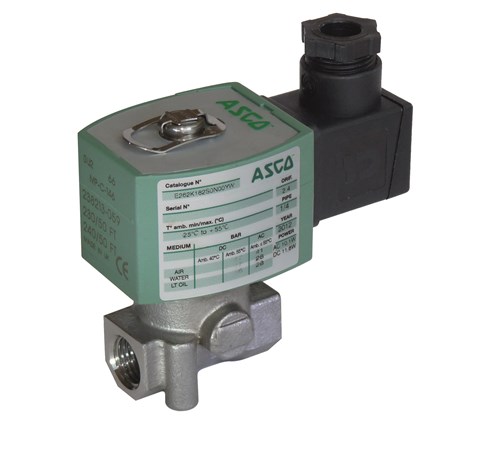

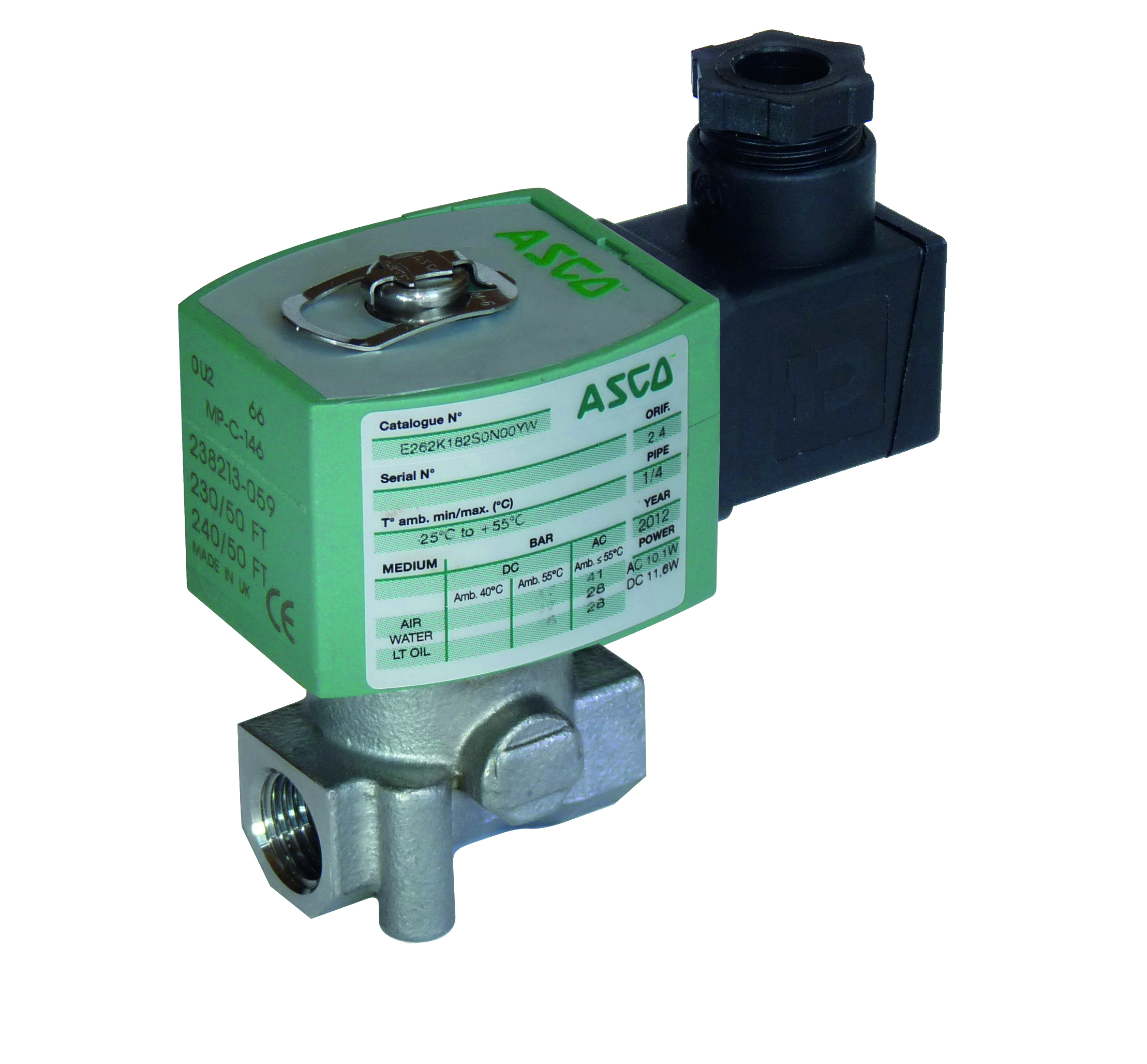

SOL. VALVE,2/2NC,1/4 G/Rp, D=5.6 STAINLESS STEEL BODY,NBR SEAL, WITH MANUAL OPERAT. 24/DC - 22.6W, WITH COIL MXXII - CLASS H, WITH STANDARD DIN CONNECTOR ROTATABLE
