| Supplier series | 287 |
| Specifications | NC (Normally closed) |
| Body material | Stainless Steel |
| Sealing | FPM (Viton®)/PTFE |
| Diameter of connection | 1/2" |
| Full voltage code | 24/DC |
| Min differential pressure | 0 |
| Max differential pressure | 12 B-A and 40 A-B |
| Operated | Without manual control |
| Kv Flow rate (m³/h) | 5.2 |
| Fluid working Temp | (-20°C to 100°C) |
| Ambient Temp | (-20°C to 60°C) |
| Compatibility - fluids | Air, neutral gas, water, oil |
| Dimensions (mm) | 173 |
| Type of current | Direct (=) - DC |
| Voltage | 24V |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 3,966 |
| Eclass | 27220000 |
| UNSPSC Code | 31251500 |

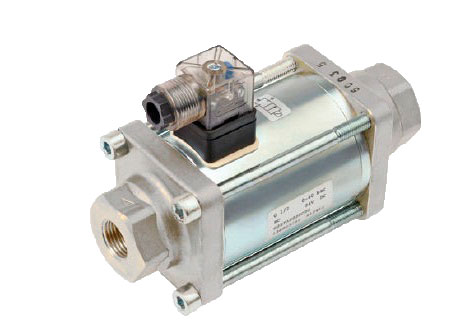

COAXIAL SOLENOID VALVE SERIES 287 STAINLESS STEEL BODY 2/2 NC G1/2 D=15 COMPLETE 24V DC SC G287A010
