Reference : SCG327B001.24/DC
Catalog Price :
€378.90
Tax excluded 21.00 %
| Supplier series | 327 |
| Specifications | NO (Normally open) |
| Body material | Brass |
| Sealing | FPM (Viton®) |
| Diameter of connection | 1/4'' |
| Full voltage code | 24/DC |
| Min differential pressure | 0 |
| Max differential pressure | 10 |
| Operated | Without manual control |
| Kv Flow rate (m³/h) | 0.45 |
| Fluid working Temp | (-20°C to 120°C) |
| Ambient Temp | (-40°C to 55°C) |
| Compatibility - fluids | Air, neutral gas, water, oil |
| Dimensions (mm) | 55 |
| Type of current | Direct (=) - DC |
| Voltage | 24V |
| Customs duty number | 8481-8059 |
| Gross weight (kg) | 0,99594 |
| Eclass | 27220000 |
| Country of origin | NL |
| UNSPSC Code | 31251500 |

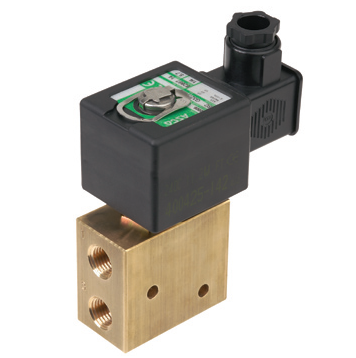

DIRECT OPERATED SOLENOID VALVE-3/2 UN-1/4" (DN8)-ORIFICE: 5,7-BRASS-RESILIENT: FPM-11,2 W-COIL CLASS: F-IP65
