Reference : IA050F3CXE2H01
Catalog Price :
€507.52
Tax excluded 21.00 %
| Body material | GGG40 cast iron |
| Sealing | EPDM |
| Type of connection | With flanges |
| Diameter of connection | DN50 |
| GN | 16 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)130°C |
| Operated | Manual by handwheel |
| Specifications | Standard bore |
| Compatibility - fluids | For common compatible fluids |
| Customs duty number | 8481-8090 |
| Gross weight (kg) | 7,7 |
| Eclass | 37060000 |
| Country of origin | BE |
| UNSPSC Code | 40140000 |

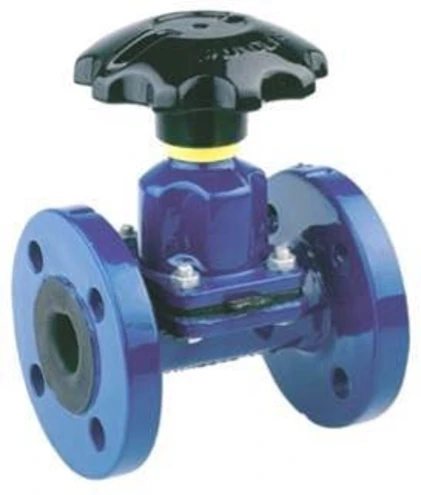

Diaphragm valve - GGG40 Cast iron - EPDM - A brides DN50 - (+)130°C - Manually operated
