Reference : CX10C0000.230/50
Catalog Price :
€1,329.82
Tax excluded 21.00 %
| Supplier series | M15/RM(O) |
| Specifications | NC (Normally closed) |
| Body material | Aluminum |
| Sealing | FPM(Viton ® )/NBR |
| Diameter of connection | DN100 |
| Full voltage code | 230/50 |
| Min differential pressure | 0 |
| Max differential pressure | 6 |
| Operated | Without manual control |
| Fluid working Temp | (-20°C to 60°C) |
| Ambient Temp | (+5°C to 85°C) |
| Compatibility - fluids | Gas - Cat. A - Group 2 - Standard EN161 |
| Dimensions (mm) | 350 |
| Type of current | Alternating (~) - AC |
| Voltage | 230V |
| Customs duty number | 8416-9000 |
| Gross weight (kg) | 0 |
| Eclass | 27220000 |
| Country of origin | IT |
| UNSPSC Code | 31251500 |

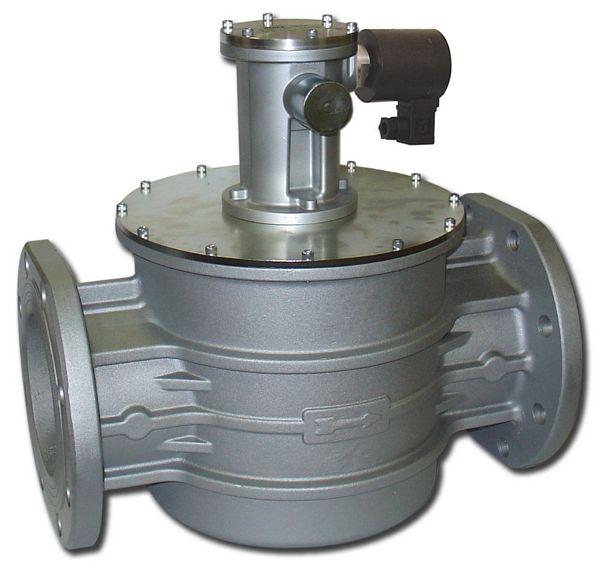

ALUMINIUM SOLENOID V. M16/RM PN16 DN100 NC 6bar 230V AC For natural gas & Ipg
