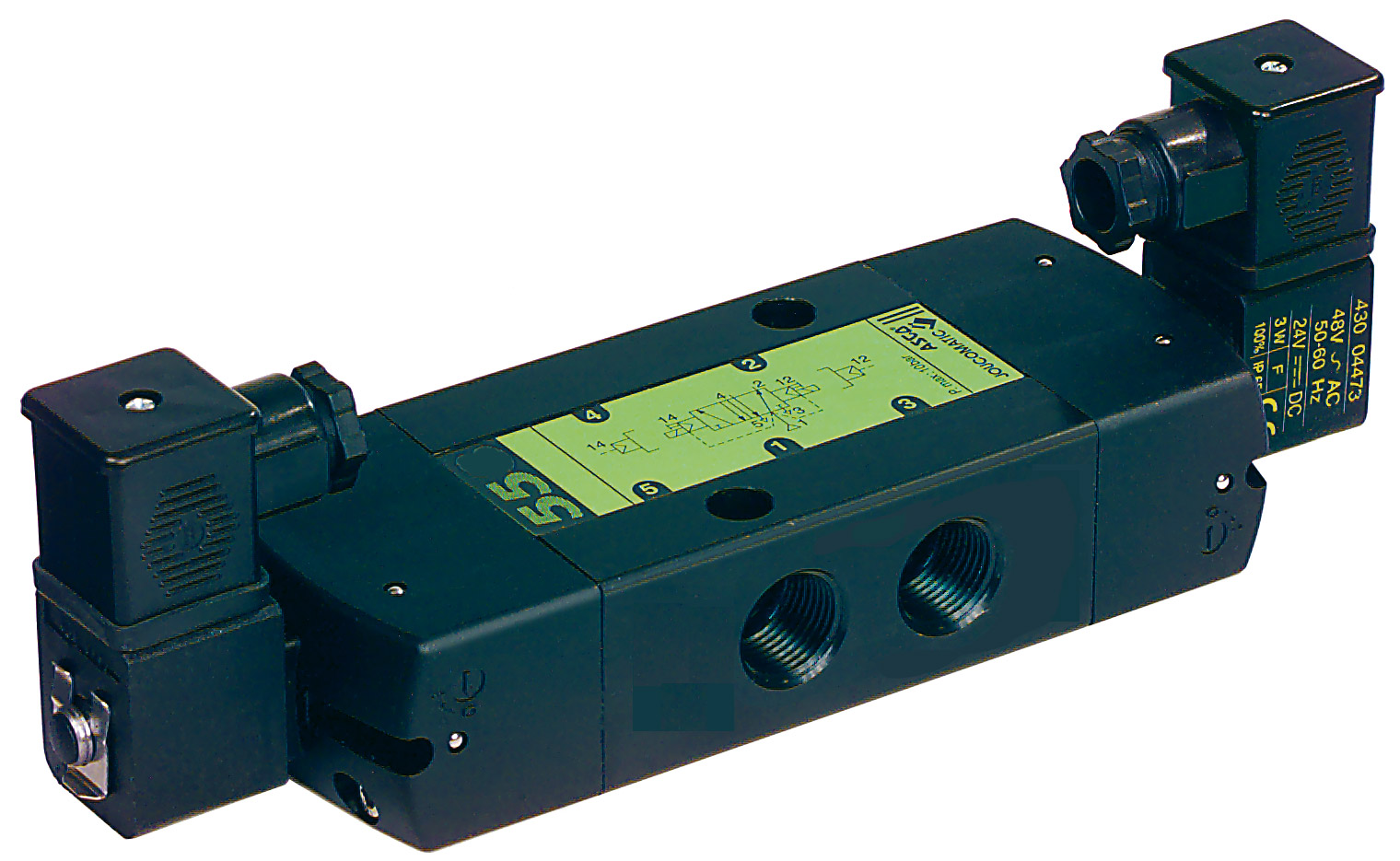

Spool valve without coil - 3/2 Bi - G1/2" - Solenoid Air operated - Spring return - With gaskets

Reference : SCG553A406.AC/DC

Price upon request Contact us
Stock Belgique (Liège) -
Stock Belgique (Hainaut) -
Stock Luxembourg (Troisvierges) -
Stock usine Quantity and short lead time
to be confirmed on request
Usual lead time :
11-15 working days
Function 3/2 Bistable with external pilot possible
Operated With pilot
Return Spring
Body material Anodized aluminum black
Joints With
Diameter of connection 1/2"
Voltage AC/DC - Body only
Flow at 6 bar (ANR) 3800
Operating pressure 0 to 10 bar
Control pressure 2 to 10 bar
Fluid working Temp (-)25°C to (+)60°C
Compatibility - fluids Air or neutral gas, filtered, lubricated or not
Customs duty number 0
Gross weight (kg) 0
Eclass 27220000
UNSPSC Code 31251500
